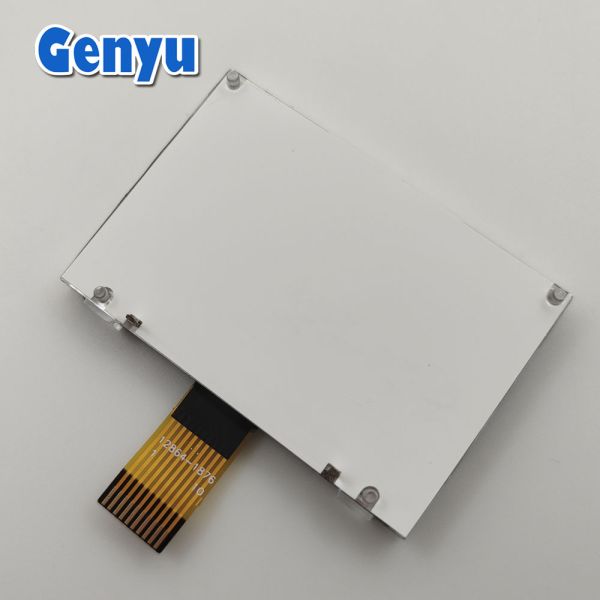

COG LCD Display 128x64 Dots Screen with ST7567 Controller
High-quality FSTN positive LCD display with 128x64 dot matrix resolution, designed specifically for handheld devices and embedded applications.
SPI Interface Pin Configuration
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Symbol | CS1B | /RES | A0 | D6(SCL) | D7(SDA) | VDD | VSS | V0 | XV0 | VG |
Technical Specifications
- Display Type: FSTN LCD screen, 128x64 dot matrix display
- Technology: Transmissive LCD screen, Positive type
- Interface: 4-wire SPI
- Drive IC: ST7567 (COG - Chip On Glass)
- Viewing Angle: 6 O'CLOCK
- Power Supply: Vop=8.2V; Vdd=2.8V
- Backlight Options: White or Blue LED
Physical Dimensions
Structure: LCD + IC + FPC + BL
Module Size: 58.50×39.70×5.20 mm
Viewing Area: 53.60×28.60 mm
Working Temperature: -10°C to 60°C
Storage Temperature: -20°C to 70°C
Connection: COG + FPC
Need additional technical information? Require FPC connector pin diagrams or custom LCD layout design?
Contact our technical team for assistance.
Product Models
GY12864-1876W: Positive LCD with White backlight
GY12864-1876B: Positive LCD with Blue backlight
